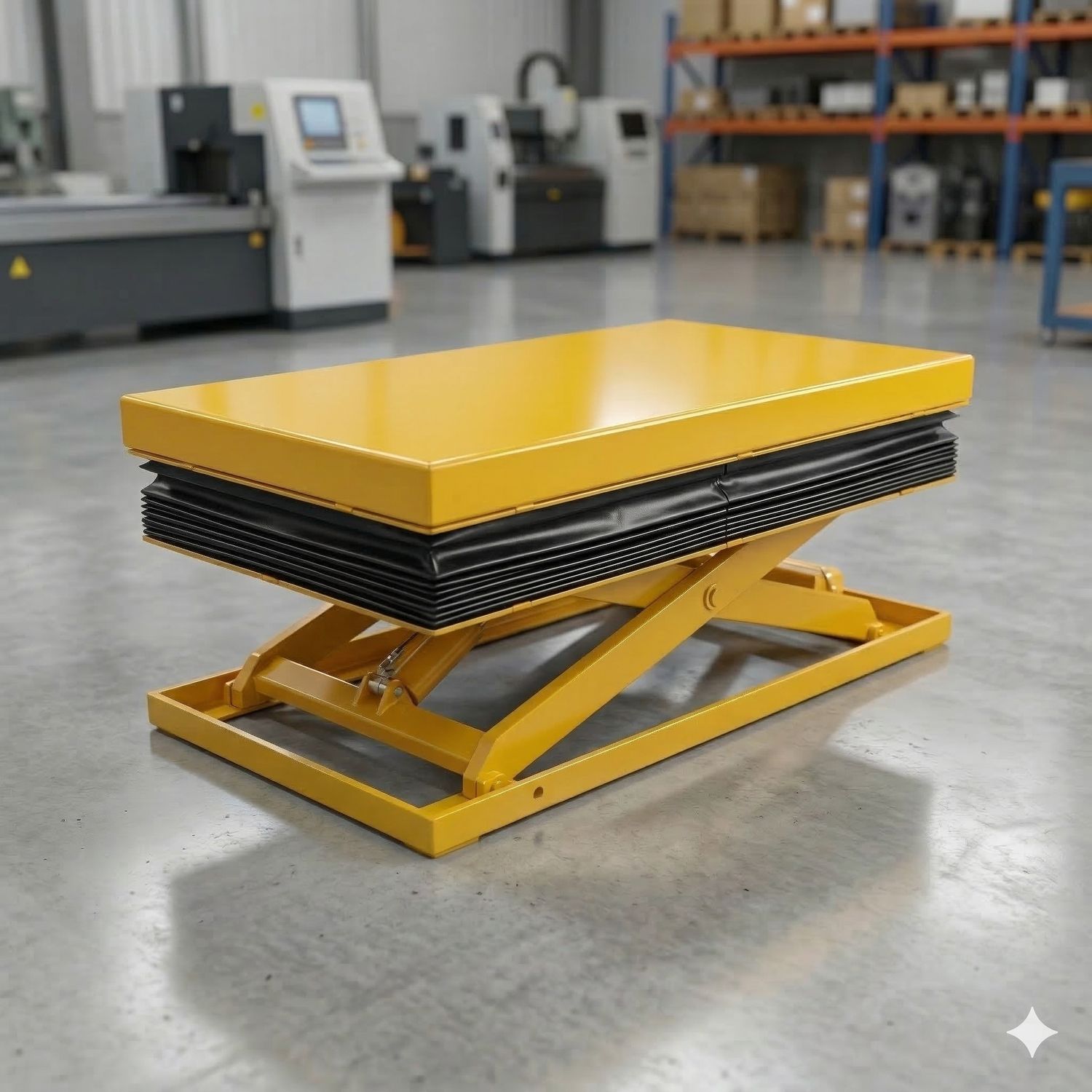

HYDRAULIC LIFT TABLE ME-100 SMOOTH TOP 1000 x 1600 (HEIGHT 300 x 1100) - CAPACITY 1000 KG EXP (380V)

Load Capacity: 1,000 kg

Dimensions and Lifting Stroke:

• Minimum height: 300 mm

• Maximum height: 1,100 mm

• Lifting stroke: 800 mm

• Platform length: 1,600 mm

• Platform width: 1,000 mm

Construction Features:

• Robust structure made of high-strength steel

• Scissor-type system for vertical lifting

• Smooth top platform

• Bellows-type protection around the entire perimeter of the table

Hydraulic System:

• Integrated mini hydraulic power unit, located under the platform (internal to the structure)

• System designed for medium and high-frequency operations

Safety System:

• Mechanical safety lock on the scissor arms for maintenance

• Complies with operational safety requirements

Electrical System:

• Electrical panel compliant with NR12 standard (no pedestal, facilitating installation)

• BX4 push-button control with 3-meter cable

o Functions: Up / Down / Reset / Emergency

• Power cable with 5 meters

Equipment Weight:

• 400 kg

Application Sectors – Hydraulic Lift Table

The Hydraulic Lift Table is the ideal solution for those seeking ergonomics, productivity, and safety in industrial operations. Designed for pallet assembly, frequent load lifting, and level compensation, it optimizes processes and reduces physical effort for operators.

Installed directly on the floor, it allows easy operator access, ensuring greater agility in logistics and production operations.

Main applications:

• Pallet assembly and organization

• Production lines

• End-of-line operations

• Load handling and lifting

• Level compensation

Application sectors:

• Metalworking industry

• Logistics and distribution centers

• Food industry

• Automotive industry

• Furniture industry

• Construction

• Warehouses and storage facilities

• E-commerce and picking operations

Equipment advantages:

• Floor-level system, optimizing space usage

• Ideal for high-frequency operations

• Reduced physical effort and increased productivity

• Prevention of occupational injuries (RSI/WMSDs)

• Safer and more ergonomic operation

Quality and compliance:

All Lycos equipment is developed by a qualified technical professional (CREA), with customized projects according to each client’s needs, strictly complying with Ministry of Labor standards such as NR10, NR12, and NR17.

Lycos offers a complete line of lift tables adapted to different industrial sectors, ensuring the ideal solution for each application.

Check other options.
